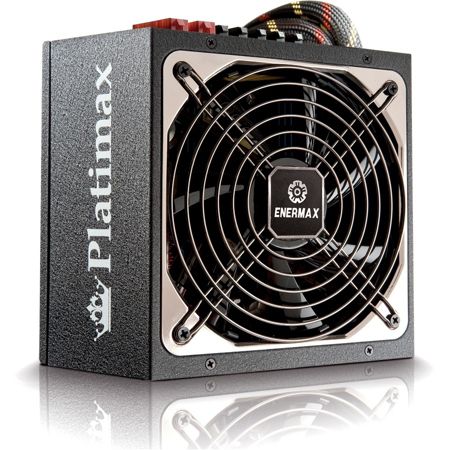

Enermax Platimax EPM600AWT ATX12V & EPS12V Power Supply Item # 473140
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
473140
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
EPM500AWT uses a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load.
Product Details
| Item # | 473140 |
| Manufacturer # | PF1235 |
| number of fans | 1 |
| height | 3.4 in |
| Power Factor Correction (PFC) | Active |
| Output Voltage | 3.3 V DC; 5 V DC; 12 V DC; -12 V DC |
| Product Line | Platimax |
| width | 5.9 in |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Output Power | 600 W |
| depth | 6.3 in |
| Product Name | Platimax EPM600AWT ATX12V & EPS12V Power Supply |
| Number of +12V Rails | 3 |
| manufacturer | Enermax Technology Corporation |
| Input Voltage Range | 240 V AC |
| Compatibility | Intel CPUs:Core 2 Duo; Core 2 Quad; Core i5; Core i3; AMD CPUs:Athlon II X2; Athlon II X3; Athlon II X4; Phenom II X2; Phenom II X3; Phenom II X4; Phenom II X6 |
| weight | 1.50 lb |
| 80 PLUS Certification | 80 PLUS Platinum |
| brand name | Enermax |
| protection type | Over Current; Over Voltage; Output Under Voltage; Over Power; Over Temperature; Short Circuit |
| Input Voltage Type | AC |
| length | 10 in. |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V1 - 25 A ¦ +12V2 - 25 A ¦ +12V3 - 25 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |
| MTBF | 100000 Hour |
| form factor | Internal |
| Receptacles | 1 x ATX; 1 x ATX12V; 8 x LP4; 1 x SP4; 8 x; 4 x; 1 x 24-pin Main Connector; 1 x 4+4pin CPU; 8 x Peripheral Device; 8 x Serial ATA; 1 x Floppy Drive; 4 x 6+2pin PCI-E |
| color | black |
| Modular | Yes |
| warranty length | 5-year limited |
| model name | EPM600AWT |
| Efficiency | 92.2% |
| Show More ▾ |
